Aluminum Precision Products (APP) are the world's largest producer of precision aluminium and iso-thermal titanium forgings supplied to the areospace industry. Under APP's guidance, Catalina Cylinders has grown to become an industry leader. All Catalina cylinders come with a 10-year manufacturing defect warranty.
PLEASE NOTE PRICE DOES NOT INCLUDE VALVE
Catalina Cylinder Specifications
Size Working Pressure Diameter Length Weight Water Capacity Buoyancy Empty

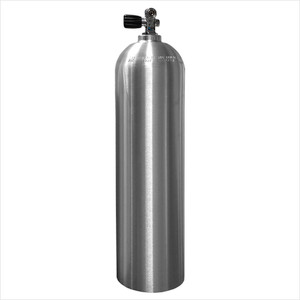

95cuft 241 Bar 184.2mm 701mm 17.1kg 11.3l +.13kg

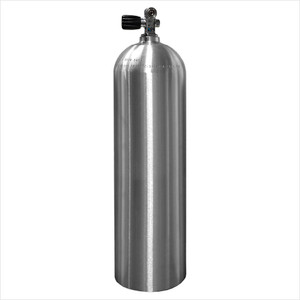

80cuft 204 Bar 184.2mm 658mm 14.2kg 11.1l +1.86kg
65cuft 241 Bar 184.2mm 531mm 13.2kg 8.3l -0.45kg

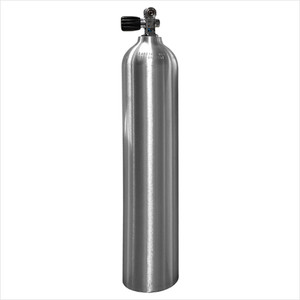

40cuft 204 Bar 133.4mm 635mm 7.3kg 5.8l +.64kg

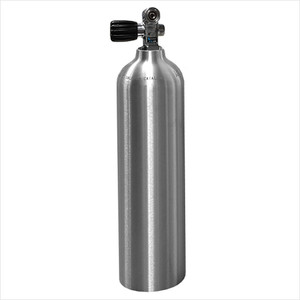

19cuft 204 Bar 111.3mm 445mm 3.5kg 2.7l +.09kg
Buoyancy calculated with "K" valve in seawater
MATERIAL: Every cylinder is produced from high strength aluminum alloy 6061-T6.
THREAD: Standard 3/4 - 14 NPSM.
All capacities are exact except the industry standard S80 which has an actual capacity of 77.4 cu ft.
PLEASE NOTE PRICE DOES NOT INCLUDE VALVE
Catalina Cylinder Specifications
Size Working Pressure Diameter Length Weight Water Capacity Buoyancy Empty
95cuft 241 Bar 184.2mm 701mm 17.1kg 11.3l +.13kg
80cuft 204 Bar 184.2mm 658mm 14.2kg 11.1l +1.86kg
65cuft 241 Bar 184.2mm 531mm 13.2kg 8.3l -0.45kg
40cuft 204 Bar 133.4mm 635mm 7.3kg 5.8l +.64kg
19cuft 204 Bar 111.3mm 445mm 3.5kg 2.7l +.09kg
Buoyancy calculated with "K" valve in seawater
MATERIAL: Every cylinder is produced from high strength aluminum alloy 6061-T6.
THREAD: Standard 3/4 - 14 NPSM.
All capacities are exact except the industry standard S80 which has an actual capacity of 77.4 cu ft.
