Splash Code | Item | Part Number | Description |
Inflator Service Kit | |||
165719 | 1&2 | 0683 | Deflate Button & Pin |
165725 | 3 | 0689 | Deflate Spring |
165715 | 4 | 0678 | Bush |
165714 | 5 | 0677 | Body |
165922 | 6 | 2-110-01 | O-ring |
165716 | 7 | 0679 | Seat |
165721 | 8 | 0685 | QD Nipple |
165920-1 | 9 | 2-011-01 | O-ring |
165722 | 10 | 0686 | Screw |
165920 | 11 | 2-006-01 | O-ring |
165920-2 | 12 | 2-012-01 | O-ring |
165921 | 13 | 2-112-01 | O-ring |
165723 | 14 | 0687 | Valve Housing |
165724 | 15 | 0688 | Inflate Spring |
165717 | 16 &17 | 0681 | Inflate Button & Pin |
165942 | 18 | 0680 | Mouthpiece |
For the latest parts pricing please use the Splash code in the search box in the top left hand corner.

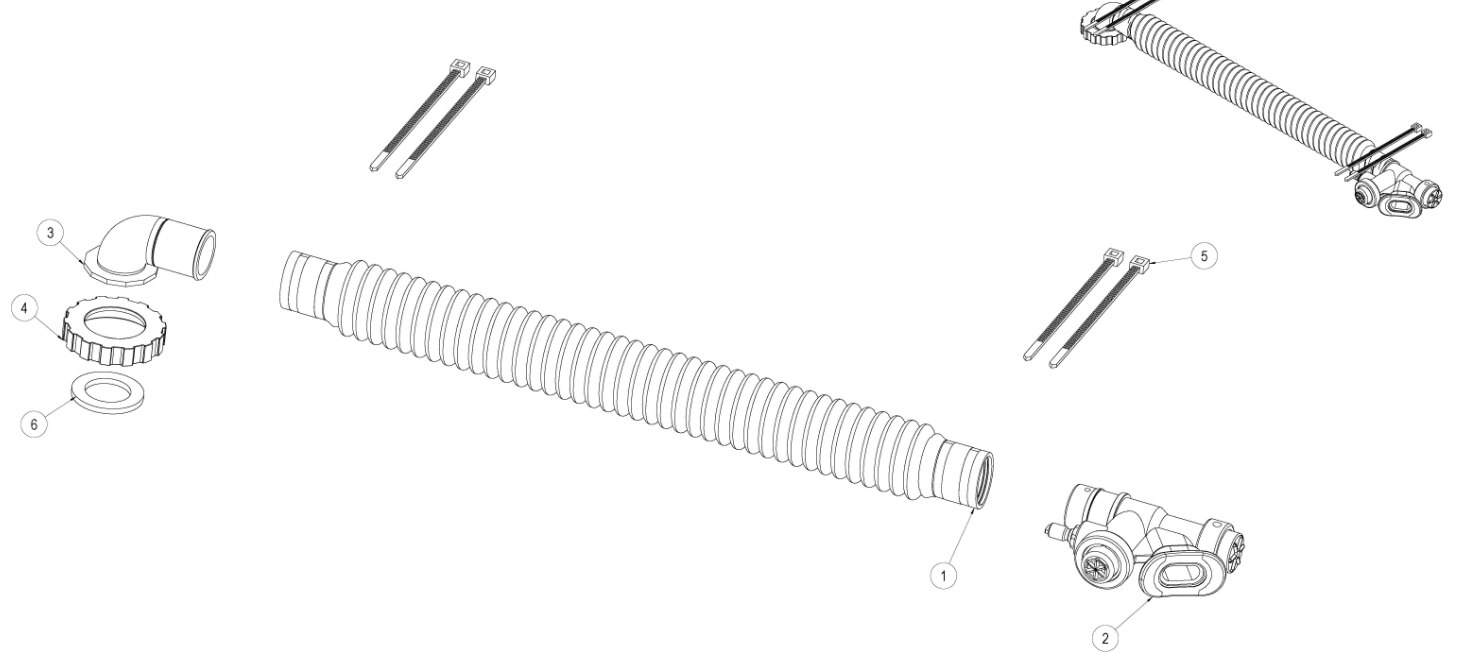

Splash Code | Item | Part Number | Description |
165712 | 1 | 0626-16 | Corrogated Hose 406mm 16inch |
2 | PI-01 | Power Inflator | |
165710 | 3 | 0610 | Elbow |
165711 | 4 | 0612 | Nut |
450660 | 5 | 0182 | Cable Tie |
165713 | 6 | 0628 | Gasket |
