For the latest parts pricing please use the Splash code in the search box in the top left hand corner.

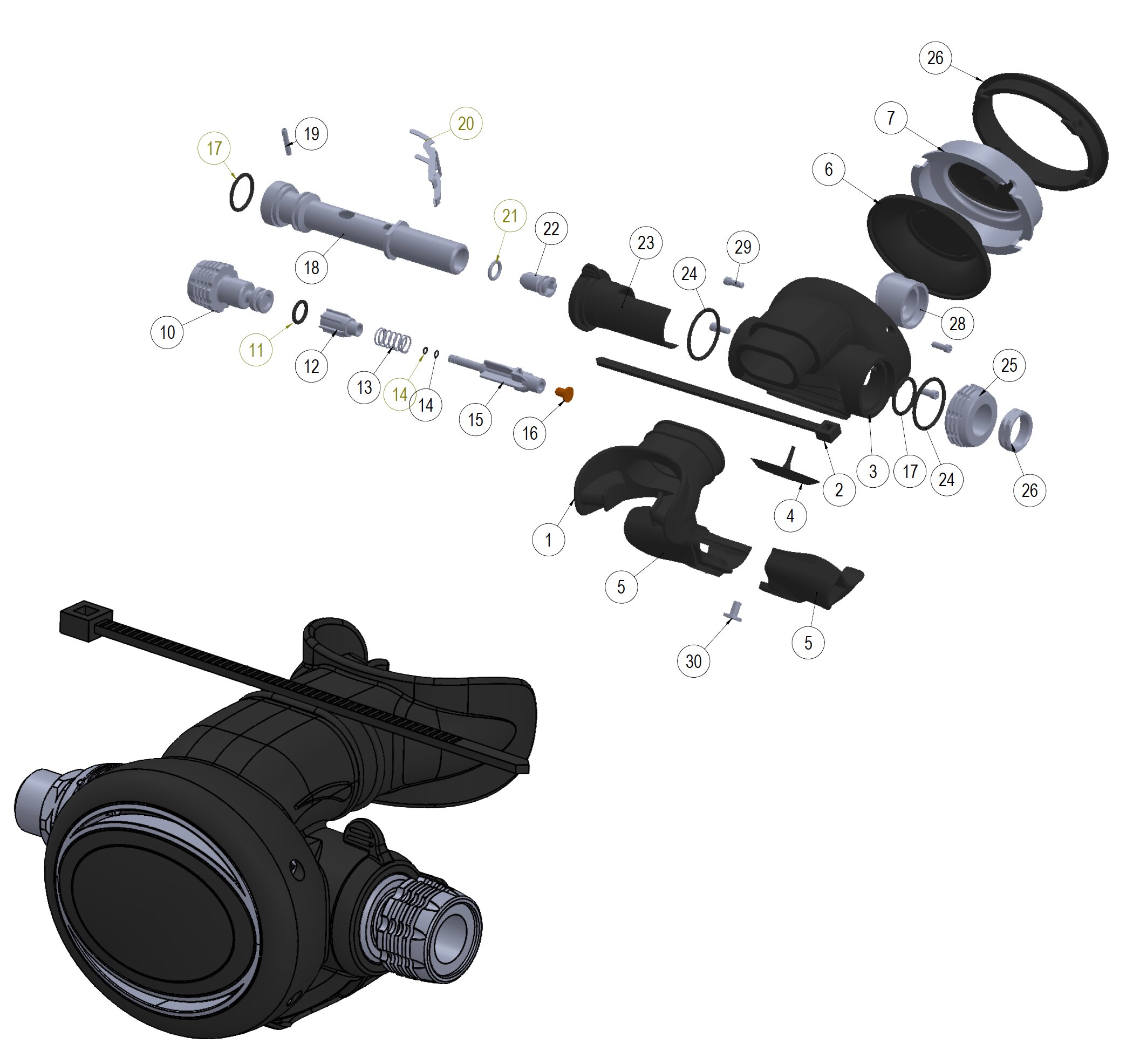

Splash Code | Item | Part Number | Description |
130313 | 1 | SMP-03-BK | Mouthpiece |
450660 | 2 | 0182-BK | Cable Tie |
790750-5 | 3 | 0513-BK | Main Housing |
790669-3 | 4 | 0177 | Exhaust Valve |
790750-8 | 5 | 0516-BK | Exhaust Cover |
790750-3 | 6 | 0510-BK | Diaphragm |
790758 | 0506-BKSM | Purge Cover Assembly | |
790750-1 | 7 | 0507-BK | Push Ring |
790751-9 | 0651-BK | Silicone Button | |
790751-6 | 10 | 0584-CS | Adjust Knob Insert |
790721 | 11 | 1-78-19-01 | O-ring |
790669 | 12 | 0174-25 | Balance Cylinder |
790692-2 | 13 | 0181-145-09 | Spring |
790748 | 14 | 3-9532-01 | O-ring |
790694-4 | 15 | 0192 | Piston |
790751-1 | 16 | 0193 | LP Seat |
790731 | 17 | 2-015-01 | O-ring |
790750-9 | 18 | 0519-CS | Adjust Tube |
790692-4 | 19 | 0183 | Adjust Knob Pin |
790692-5 | 20 | 0184 | Lever Arm |
790724 | 21 | 2-010-01 | O-ring |
790694-5 | 22 | 0194 | Orifice |
790750-7 | 23 | 0515R-BK | Deflator Knob - Right |
790735 | 24 | 2-019-01 | O-ring |
790751-5 | 25 | 0583-CS | Bushing |
790750-2 | 26 | 0509-BK | Cover Ring |
790669-2 | 27 | 0176-CS | Nut |
790750-4 | 28 | 0512 | Mold Insert |
790751 | 29 | 0521 | Body Screw |
790716-4 | 30 | 0258 | Screw |
790750-6 | 0514 | Deflator Pad |
